Name: Coding Robot Starter Kit ESP8266 D1 WIFI IoT Kit Educational Robotics Kit ESP8266 Development Board
SKU: 564555

Description:

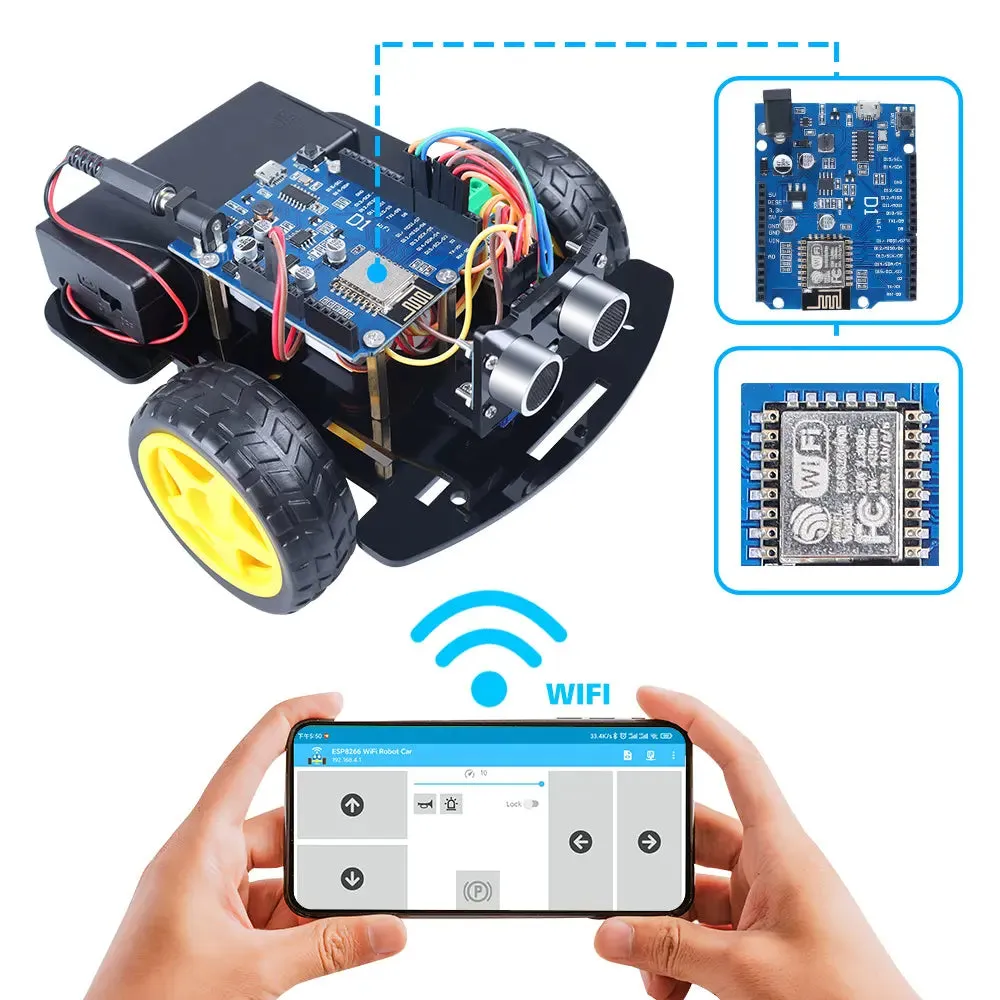

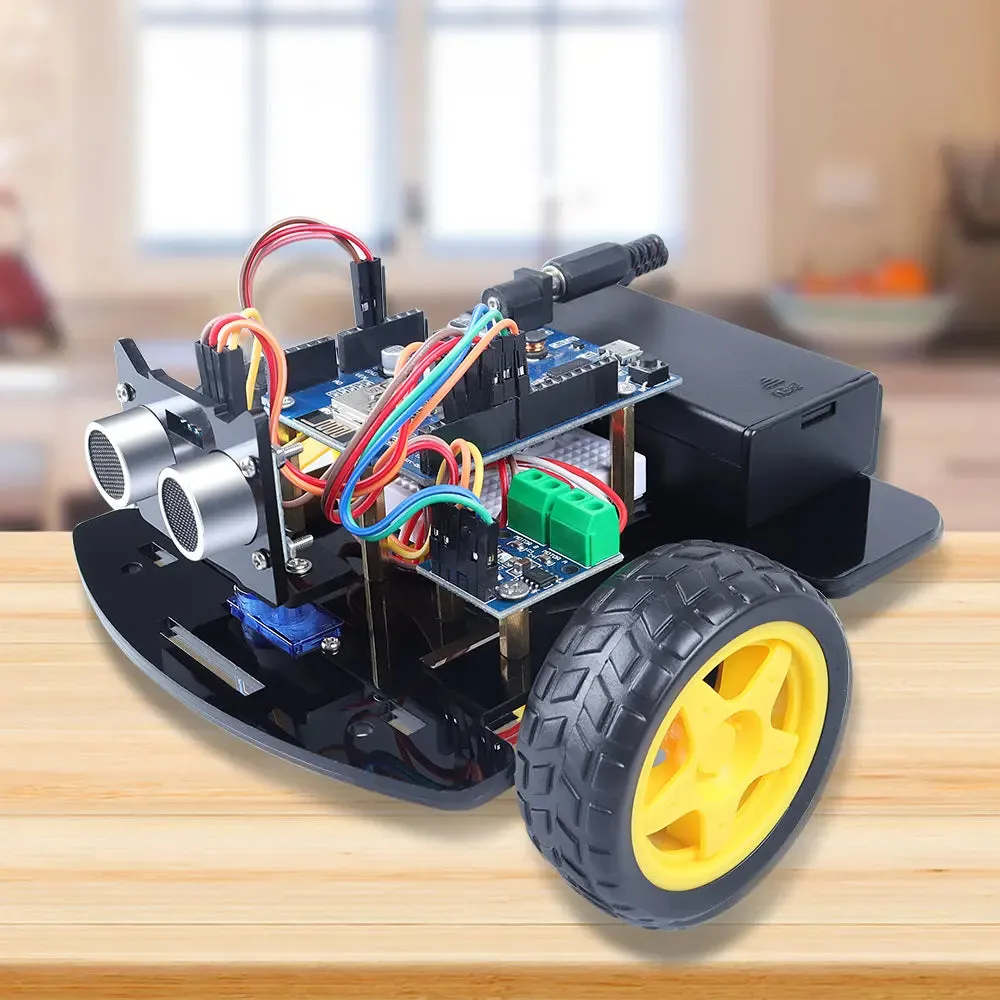

1.This product is an intelligent car developed based on ESP8266 D1, with WiFi remote control function and ultrasonic obstacle avoidance function.

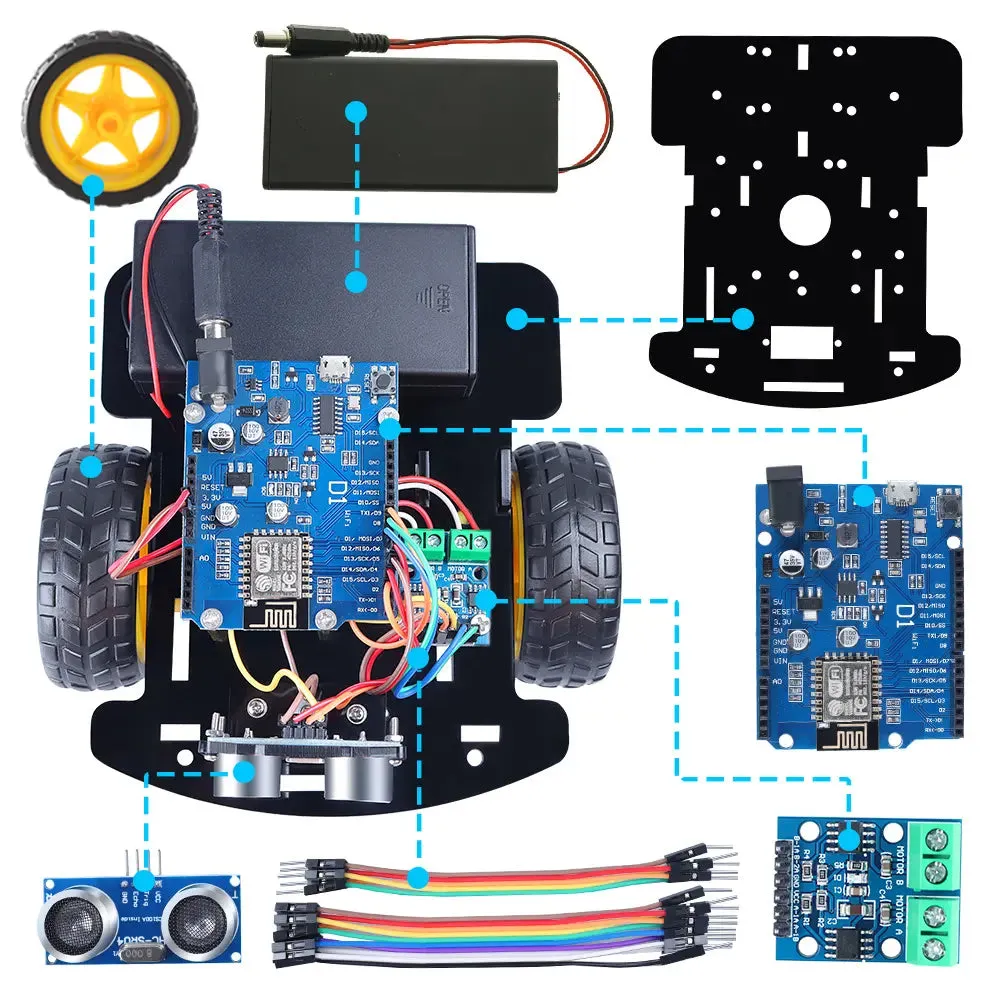

2.There are mainly 3 modules, respectively: the main control module, motor drive module, ultrasonic sensor module.

3.Through the ultrasonic sensor ranging, encountered obstacles, automatic planning of driving route.

4.This product adopts the welding free installation design, the parts are fixed by the copper column and the screw structure, the circuit connection between each electronic module is connected by the DuPont line, simple and convenient.

Features:

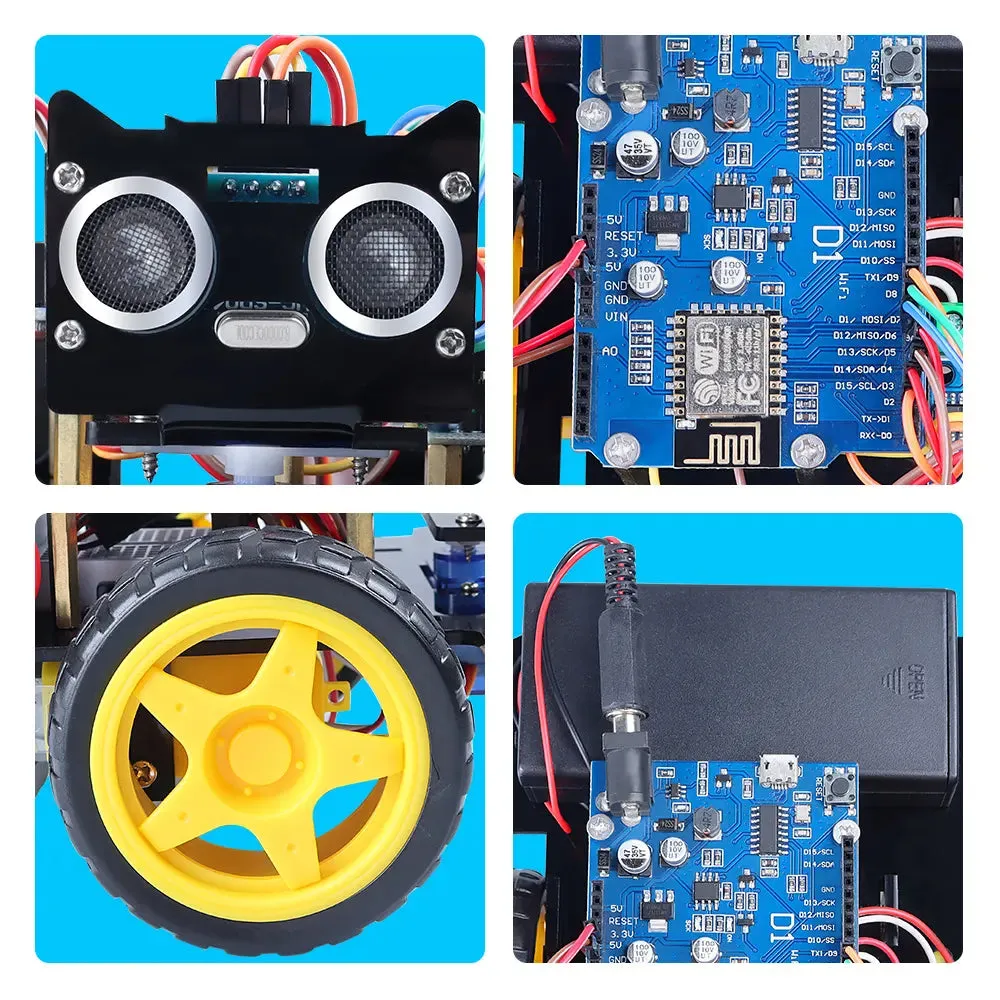

1. The main control board adopts ESP8266 D1 development board.

2. Motor drive module uses L9110S module to drive DC motor.

3. ESP8266 WIFI wireless module, connect to the WIFI signal through the mobile APP, send control instructions, and realize the motion control of the smart car.

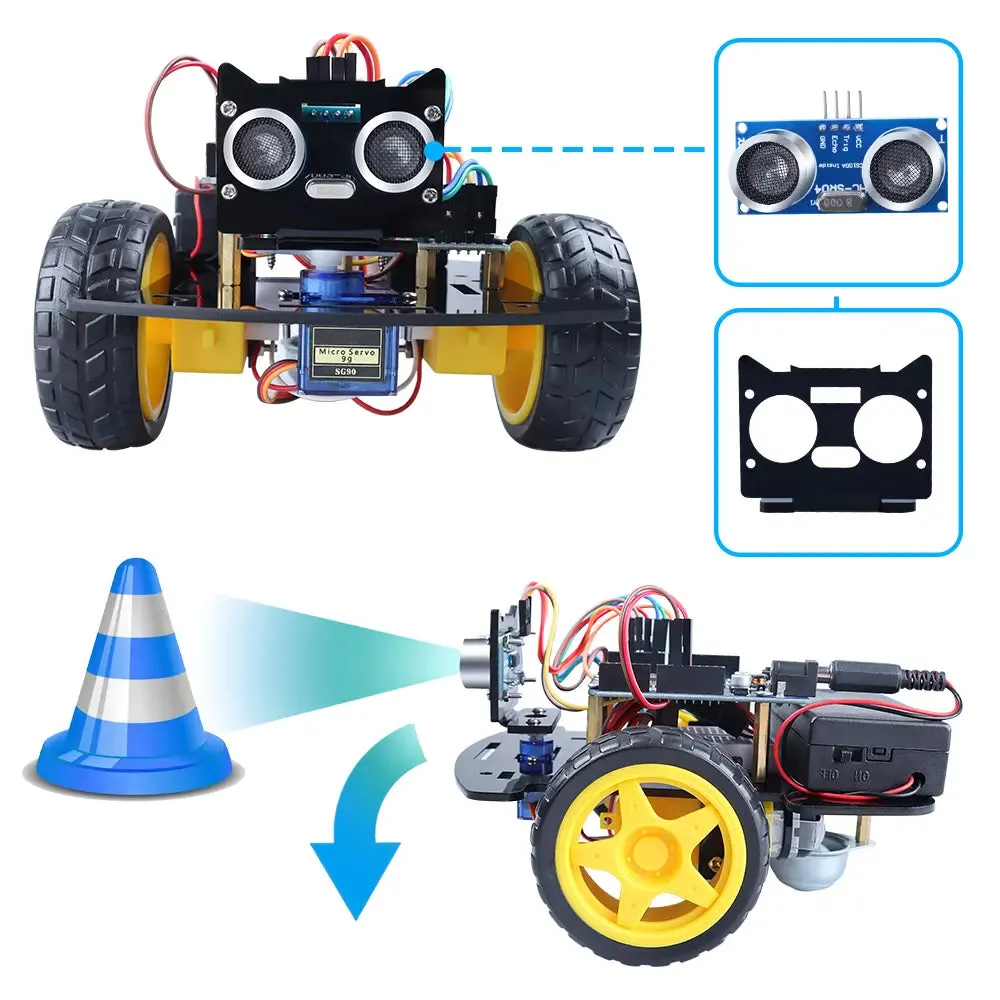

4.The ultrasonic sensor module is HC-SR04 module, using ultrasonic, the wave ranging sensor measures the distance between the car and the obstacle, and changes the direction when it is less than the set obstacle avoidance value to realize the obstacle avoidance function.

5.The use of acrylic plate as the car chassis, light and thin and not easy to deformation.

Product parameters:

 Power supply: 2 removable 3.7V lithium batteries

 Input: Ultrasonic module (HC-SR04)

 Communication: WIFI wireless communication

 Motor: DC reducer motor, servo motor

 Motor drive: L9110S module

 motherboard: ESP8266 D1

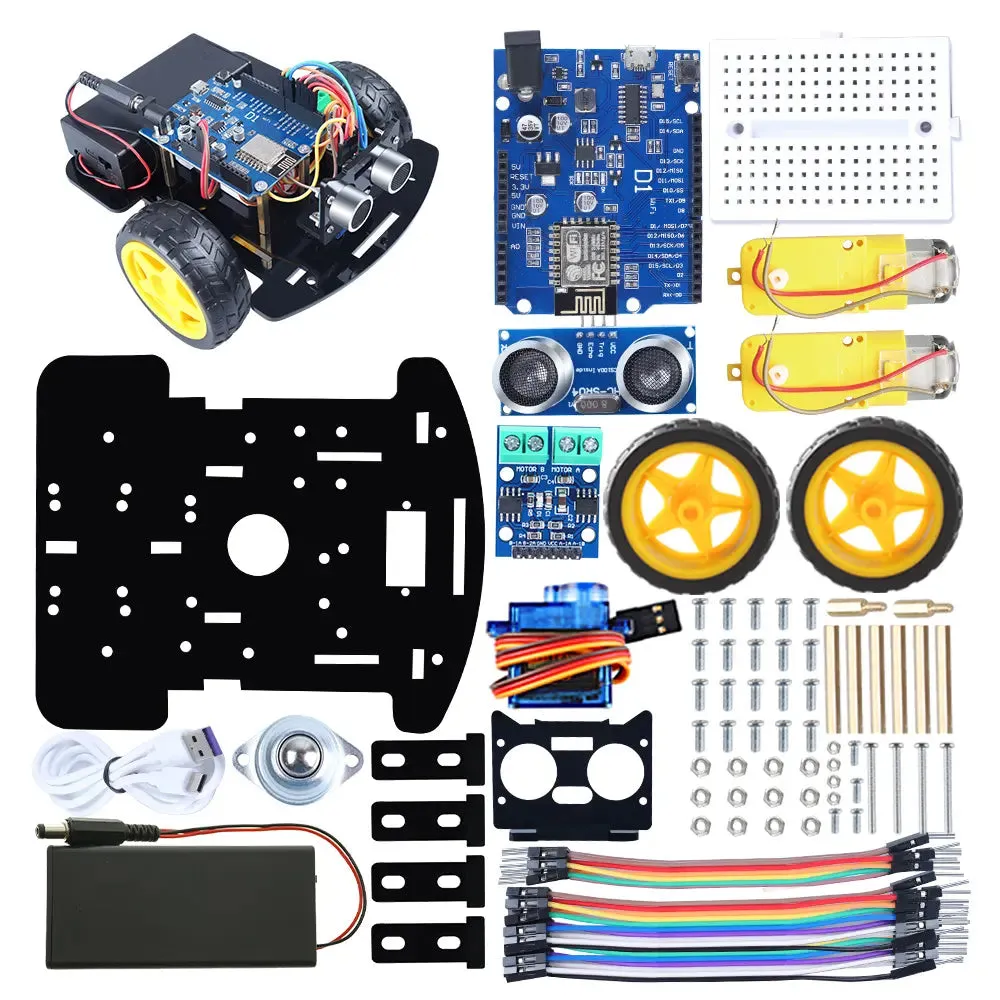

Packing list:

ESP8266 D1 Development Board *1

L9110S motor drive plate *1

HC-SR04 ultrasonic module *1

Ultrasonic sensor bracket *1

18650 battery box( without battery for shipping ) *1

DC TT motor *2

Breadboard 170 *1

SG90 servo motor *1

Data cable *1

10cm male to female Dupont line *16

10cm male to male Dupont line *8

Mini DIY car chassis *1

Ball universal wheel *1

M2 nut * 2

M2 * 2 * 10 screw

M1.6-m7 * 4 * 10 screw

M1.6-m7 nut * 4

M3 * 30 screws *4

M3 * 25 double through copper column *6

M3 * 2 * 10 copper column

M3 nut * 12

M3 * 8 screws * 20

Transparent poly bag (180mm*260mm) *1

By having this kit, you'll learn the following:

1) What is Embedded System and Robotics.

2) What is Open-source programming and Its components.

3) How to control outputs with Open-source programming.

4) How to read inputs with Open-source programming.

5) How to make an Obstacle Avoidance IoT WiFi Robot. And many more!

What Students and Kids will learn? The basics of electronic circuit The machine interface method The programming problem solving and debugging The robotics software architecture practical using IED The programming creativity The programming practices The programming collaboration The step-by-step tutorials, user manuals, and instructions
