The MXR Layers Pedal blooms with rich, organic sustain that imbues every strum and pluck with resonance and depth. With a versatile suite of controls, this pedal can be as simple or complex as you need. Whether you want to lengthen single notes or generate multi-layered soundscapes rich with ambience, the MXR Layers Pedal will extend the creative potential of your instrument. Pull off chord voicings you never thought possible, compose transcendent melodies, orchestrate harmonic ensembles, create lively stereo pads, and more—all from a standard MXR housing.
Layers will confer its expertly created sustain and natural decay to up to three layers, each with its own mini LED to tell you its active. First, decide if you want to run just a single layer or up to three—engaging the Single switch keeps it to one. Layers can be triggered both with the footswitch and through your playing dynamics. With the footswitch, you just play a note or chord and hold the switch down—releasing the switch will allow the layer to fade according to your Decay knob setting. This is perfect for composing complex solos over droning accompaniments. Alternatively, you can trigger layers automatically in response to your attack, as set by the Trig knob. Combine these two methods for more creatively complex sound stacking: with Single mode disengaged, you can hold a layer with the footswitch and then auto-trigger more layers over top.
Delving beyond the core features, the MXR Layers Pedal offers the experimentally inclined even more intricate opportunities to customize not only the sound of your layers but the overall playing experience. Through the pedal’s programming functions, you can adjust additional parameters, including modulation intensity, delay time, diffusion, and more. You can also use your keyboard’s sustain pedal or another off-board switch such as the MXR Split Tap to trigger your layers, blend setting configurations with the Volume(X)™8 Pedal, and run Stereo Input, Stereo Output, and Dry/Wet Split modes.

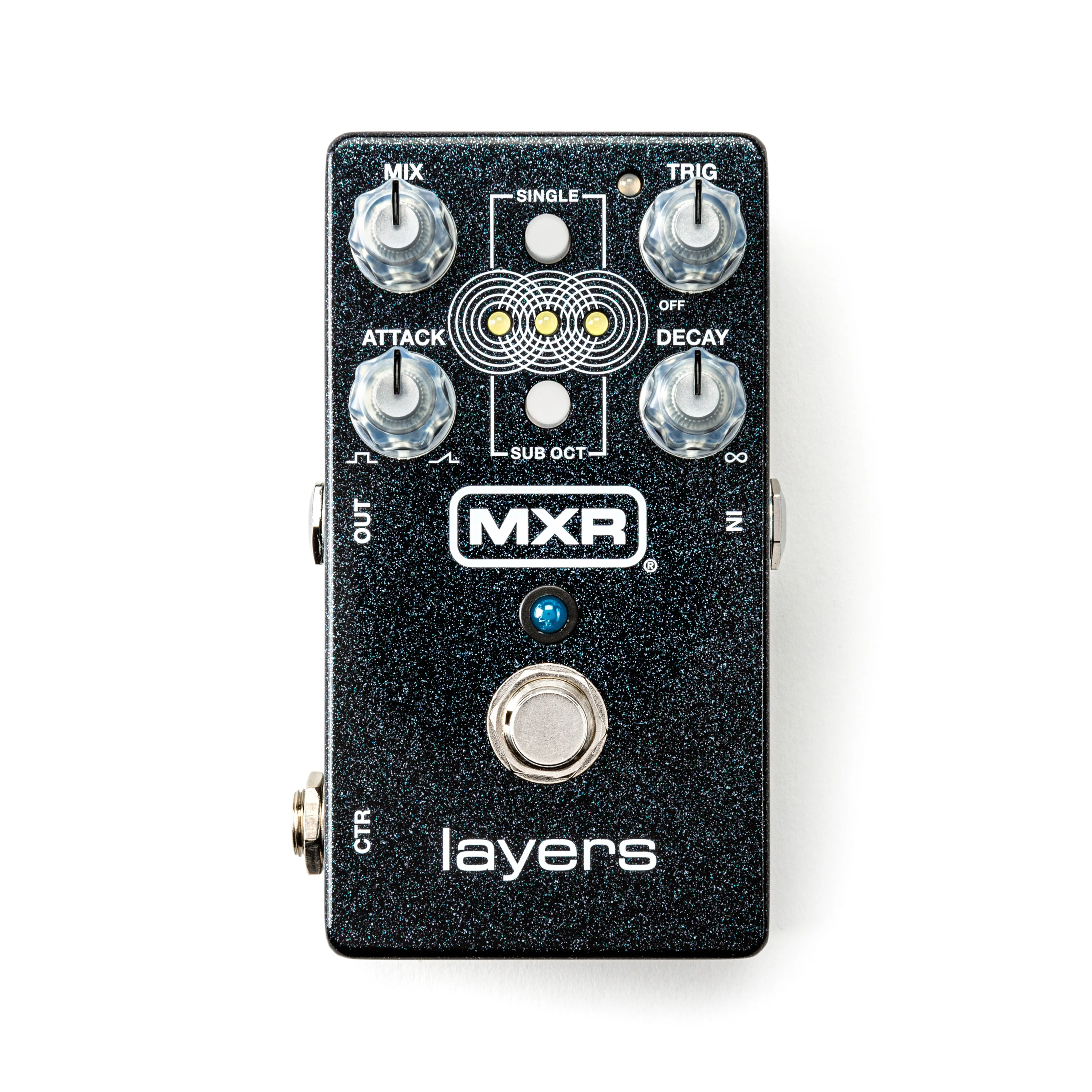

Features:
- Extend the creative potential of your instrument with rich, organic sustain
- Versatile suite of controls opens new frontiers to plug-and-play maestros and tonal tinkerers alike
- Up to three layers of sustain, each with its own status LED
- Trigger layers with footswitch or playing dynamics
- The Mix knob adjusts the wet signal level; in other words, the volume of your layers
- Trig knob sets the sensitivity of auto-trigger function
- Attack knob adjusts the fade-in time of each layer, while Decay knob sets the fade-out time
- Sub Oct switch adds fat subterranean vibes
- Advanced features such as expression pedal and tap switch control or additional parameter tweaks offer even more intricate customization
- Build richly detailed soundscapes that elevate musical expression to new heights
Specifications:
- Input Impedance: 1M Ω
- Output Impedance: 100 Ω
- Maximum Input Level: 5 dBV
- Noise Floor: -97 dBV
- Current Draw: 300mA
- Power Supply: 9V DC
